$69.99

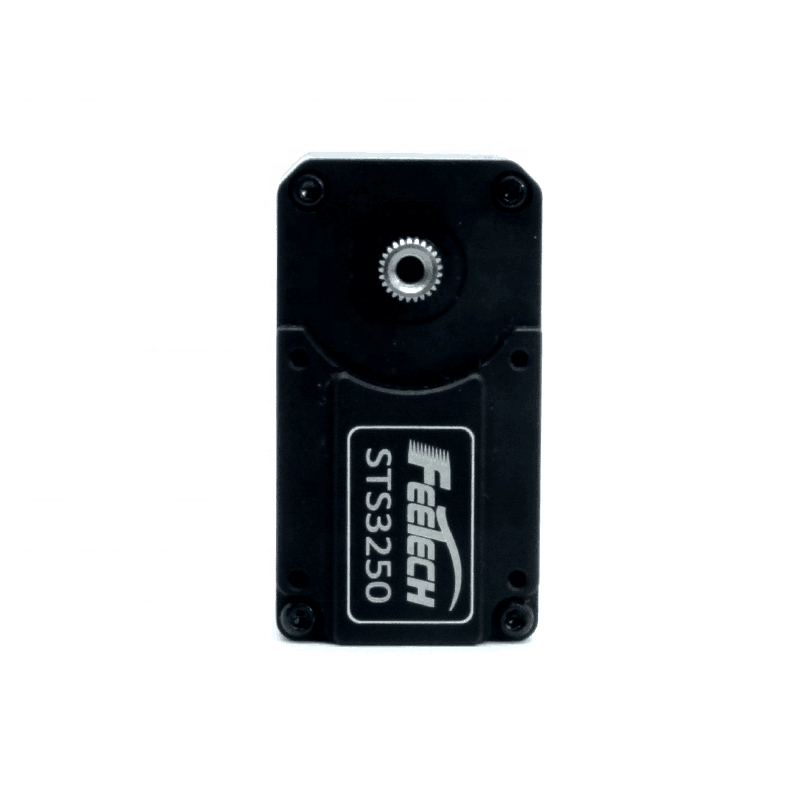

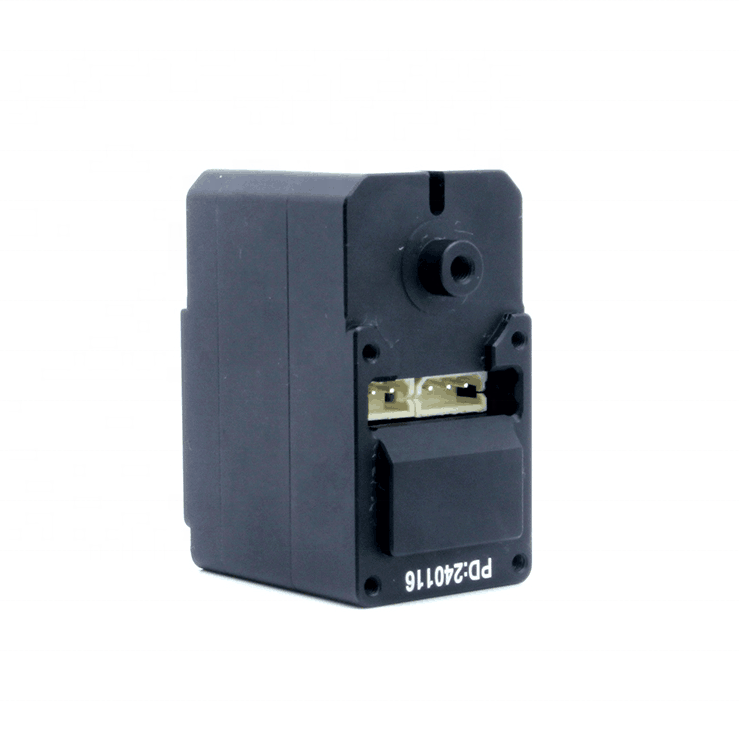

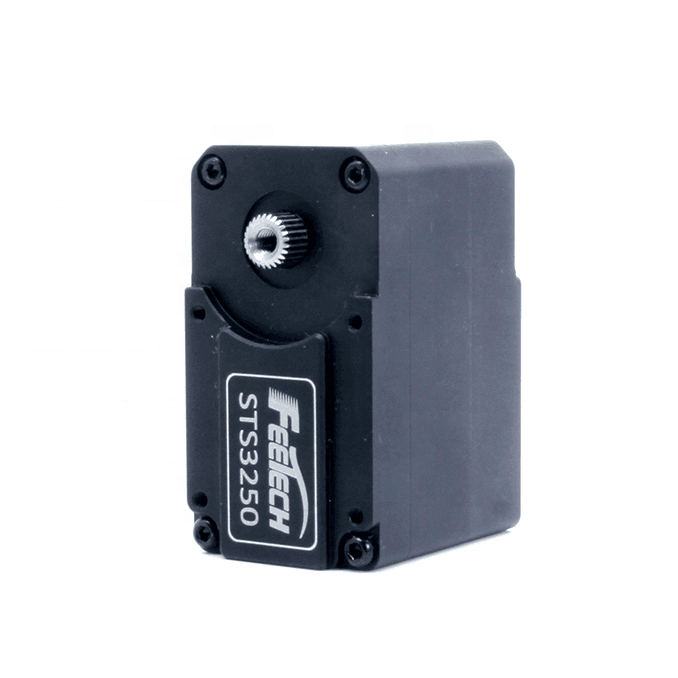

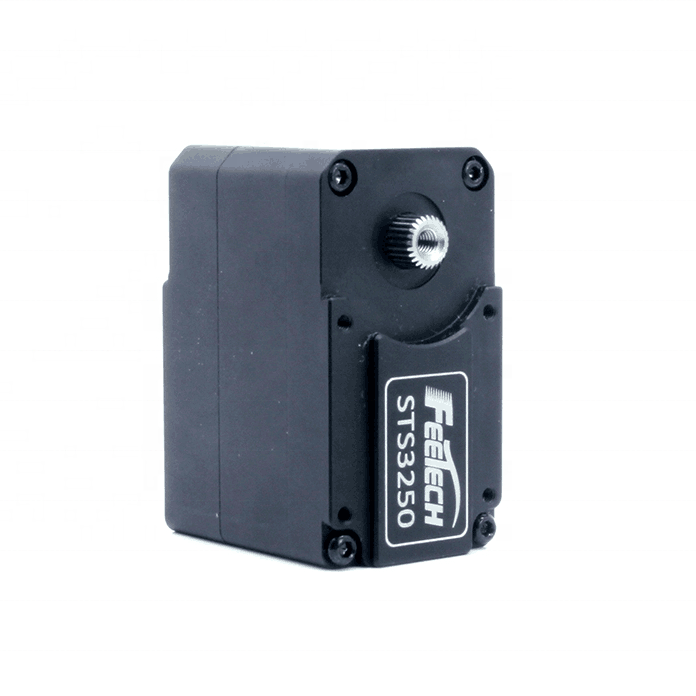

The STS3250 is a 12V 50kg serial bus smart servo featuring an aluminum alloy case, coreless motor, metal gearbox, and Feetech's self-researched TTL control board with 12-bit high precision magnetic coding sensor. With a stall torque of 50kg.cm, it can achieve 0-360 degree controllable positioning and multi-turn continuous operation mode.
Key Features
- One-key middle point setting
- Acceleration slow start and slow stop
- Real-time feedback: Position, speed, voltage, current, temperature, load parameters
- Protection: Overload and over-current protection
- Applications: Industrial equipment, robotics, and small torque drive scenarios
Technical Specifications
| Specification | Value |
|---|---|
| Model | ST-3250-C001 |
| Operating Voltage Range | 6-12V |
| Peak Stall Torque | 50kg.cm @ 12V |
| Rated Torque | 16kg.cm @ 12V |
| No Load Speed | 0.133sec/60° @ 12V |
| Running Current (No Load) | 280mA @ 12V |
| Stall Current | 4.2A @ 12V |
Physical Properties
| Specification | Value |
|---|---|
| Dimensions | 45.22mm × 24.72mm × 35mm |
| Weight | 74.5± 1g |
| Case Material | Aluminum alloy |
| Motor Type | Coreless Motor |
| Gear Type | Steel gear |
| Bearings | Ball bearings |
| Horn Gear Spline | 25T/OD5.9mm |
Communication & Control
| Specification | Value |
|---|---|
| Command Signal | Digital Packet |
| Protocol Type | Half Duplex Asynchronous Serial Communication |
| ID Range | 0-253 |
| Communication Speed | 38.4Kbps ~ 1Mbps |
| Running Degree | 360° (0~4096) |
| Neutral Position | 180° (2048) |
| Connector Wire | 15cm |
Environmental Specifications
| Specification | Value |
|---|---|
| Operating Temperature | -20℃ ~ 60℃ |
| Storage Temperature | -30℃ ~ 80℃ |
| Limit Angle | No limit |
| Rocker Phantom | 0° |
Feedback Parameters
- Load monitoring
- Position feedback
- Speed monitoring
- Input voltage detection
- Temperature sensing
